ClaudeDisplayClaudeDisplay

Claude-Usage-Display

Shows your Claude usage (5-hour session and 7-day week) and the status of your running Claude Code sessions on an ESP32-2432S028 "Cheap Yellow Display" (CYD).
Tap a session to open it in Claude Desktop. USB serial only: no Wi-Fi, no token on the device.

Claude CLI (get_usage)  ─┐
~\.claude\sessions       ├─► collector.ps1 ──► USB serial, NDJSON ──► CYD firmware
Desktop session files    │   (Task Scheduler,     115200 baud          3 pages, touch
Remote Control list     ─┘    PowerShell 7)

• Host: host/collector.ps1 fetches the usage every 2 minutes, reads the state of the local sessions every 2 s and the Remote Control sessions of other machines every 30 s. It computes a forecast and sends everything to the display.
• Display: three pages (Home → Local → Remote), back to Home after 60 s without a tap. Tap a session to open it in Claude Desktop; swipe sideways (or tap anywhere else) to switch pages. Full brightness; the backlight turns off while Windows is locked.

Made for the Claude Desktop app on Windows (Code tab). This project is not meant for setups that only use the Claude Code CLI in a terminal; for those, Claude Code's built-in status line is the better fit. In the background the collector uses the CLI that ships with Claude Desktop; you don't install or use the CLI yourself.

Unofficial community project, not affiliated with or endorsed by Anthropic. Claude is a trademark of Anthropic.

Requirements

• Board: ESP32-2432S028 ("Cheap Yellow Display", 320×240, touch). Tested with the dual-USB revision (micro-USB + USB-C, ST7789 panel); the original revision with an ILI9341 panel has its own build env. USB serial chip CH340, CH9102 or CP2102.
• PC: Windows 10/11 with PowerShell 7.5+. No admin rights needed.
• Claude: the Claude Desktop app for Windows with the Code tab, signed in with a claude.ai subscription (Pro, Max, Team or Enterprise). With an API key there are no usage limits and therefore nothing to show. Setups with only the standalone Claude Code CLI are not supported.
• Only for building from source: PlatformIO Core, easiest through the PlatformIO extension for VS Code or the official installer. Both put pio into %USERPROFILE%\.platformio\penv\Scripts, but not on the PATH. For the current PowerShell session this is enough: $env:PATH += ";$env:USERPROFILE\.platformio\penv\Scripts". Alternatively with Python 3: py -m pip install --user platformio, then use py -m platformio instead of pio.

Contents

Path	Purpose
firmware/	PlatformIO project: envs app (ST7789) and app-ili9341 = display, test-st7789/test-ili9341 = test image
host/collector.ps1	Background process: usage, forecast, sessions, latest.json, serial
host/claude-cli.ps1	Finds the Claude CLI (used by collector.ps1 and the install scripts)
host/install.ps1	Sets up autostart (Task Scheduler, no admin) and signs in the CLI
host/update.ps1	Self-update, started from the display's update banner (download, checksum, flash, reinstall)
host/uninstall.ps1	Undoes everything
setup/	Setup assistant for the release ZIP (Setup.cmd, Setup.ps1, Uninstall.cmd, README.txt)
docs/images/	Logo and the screenshots in this README
tools/make-release.ps1	Builds a release into dist/: all firmware images (checked for local paths) and the setup ZIP
CHANGELOG.md	Notable changes per release

Quick start (plug & play)

1. Download ClaudeDisplay-Setup-vX.Y.Z.zip from the latest release and unpack it to a folder you keep (e.g. Documents\ClaudeDisplay).
2. Plug the CYD into your PC with a USB data cable.
3. Double-click Setup.cmd and follow the prompts (if Windows asks, choose "More info" → "Run anyway").

The setup assistant

• checks Claude Desktop and PowerShell 7 (and offers to install PowerShell 7 from the Microsoft Store, no admin rights needed),
• finds the board (CH340, CH9102 or CP2102),
• downloads Espressif's official esptool (pinned version, SHA256-checked) for the duration of the setup,
• optionally backs up the board's original firmware into the backup folder,
• flashes the display firmware and asks whether the screen looks right; if not, it flashes the other panel variant (ST7789 / ILI9341),
• installs the background service, including the one-time browser login to Claude.

Afterwards the display shows your usage within a few seconds. To remove the background service later, double-click Uninstall.cmd.

Without the assistant: the release also contains the firmware images on their own. Each contains bootloader, partition table and app and is written to address 0x0, e.g. with the Espressif web flasher in Chrome/Edge or with py -m esptool --chip esp32 --port COMx --baud 460800 write_flash 0x0 <file>:

Image	For
claude-display-st7789-vX.Y.Z.bin	Dual-USB revision (ST7789 panel)
claude-display-ili9341-vX.Y.Z.bin	Original revision (ILI9341 panel)
test-st7789-vX.Y.Z.bin, test-ili9341-vX.Y.Z.bin	Test image to find out which panel you have (see setup step 2)

Then install the host part as in setup step 4. If the image looks wrong (inverted colors, swapped red/blue, rotated), build the firmware yourself with the build flags from setup step 2.

Setup (manual / from source)

Run all commands in PowerShell 7 from the project folder (root of this repo); -d firmware tells PlatformIO where the firmware project is. If you downloaded the repo as a ZIP, Windows marks the scripts as "from the internet"; that is why the commands use -ExecutionPolicy Bypass.

1. Back up the original firmware (recommended)

The board ships with a demo program. If you want it back later, back up the whole flash before flashing for the first time (4 MB, about 2 minutes; COMx = the board's port in Device Manager). The first build downloads the tools (esptool):

pio run -d firmware -e app; New-Item -ItemType Directory -Force firmware\backup | Out-Null

pio pkg exec -p tool-esptoolpy -- esptool.py --chip esp32 --port COMx --baud 460800 read_flash 0 ALL firmware\backup\original-firmware.bin

firmware/backup/ is listed in .gitignore and never ends up in the repo.

2. Determine the panel type

The CYD revisions use different display controllers. The test image shows labelled color bars; the right variant has a black background, matching colors and readable text ("<- oben links" = "top left" is in the top-left corner):

pio run -d firmware -e test-st7789 -t upload

If it looks wrong, try test-ili9341. If something is still off, build flags help; they apply to the app in the same way (set them before building and keep them for the app):

Problem	Flag
White background, negative colors	$env:PLATFORMIO_BUILD_FLAGS = "-DPANEL_INVERT=1"
Red and blue swapped	$env:PLATFORMIO_BUILD_FLAGS = "-DPANEL_SWAP_RB=1"
Image rotated or mirrored	$env:PLATFORMIO_BUILD_FLAGS = "-DROTATION=3" (0–3 rotated, 4–7 mirrored; default 1)
Taps land upside down or in the wrong row	$env:PLATFORMIO_BUILD_FLAGS = "-DTOUCH_ROTATION=0" (touch orientation relative to the panel, 0–7; default 4 = vertically flipped). Each tap that opens a session is logged with its position

Combine several flags with spaces, e.g. "-DPANEL_INVERT=1 -DROTATION=3".

3. Flash the firmware

pio run -d firmware -e app -t upload

For ILI9341 boards use -e app-ili9341. PlatformIO finds the port by itself; with several serial devices attached add --upload-port COMx. If the collector is already running it holds the port: run Stop-ScheduledTask 'Claude Usage Display' first and Start-ScheduledTask 'Claude Usage Display' afterwards.

4. Install the host part (once, no admin rights)

pwsh -NoProfile -ExecutionPolicy Bypass -File .\host\install.ps1

The script

1. copies collector.ps1, claude-cli.ps1 and update.ps1 to %USERPROFILE%\.usage-display\,
2. creates the task "Claude Usage Display". It starts at logon via conhost --headless, so without a visible window,
3. signs in the Claude Code CLI bundled with Claude Desktop if it is not signed in yet (claude auth login, a one-time browser login with your Claude account). The collector uses this CLI in the background; its login is separate from the desktop app's own login,
4. starts the collector.

Optional parameters, e.g. your own page titles (max. 14 characters) such as the name of the server the remote sessions run on:

pwsh -NoProfile -ExecutionPolicy Bypass -File .\host\install.ps1 -LocalLabel "Laptop" -RemoteLabel "my-server"

Parameter	Effect
-LocalLabel, -RemoteLabel	Title of page 1 and 2 (default "Local" / "Remote"); "" restores the default
-Port COMx	Use a fixed COM port instead of searching; "" switches back to automatic
-NoLogin	Do not start the CLI login

The values are stored in %USERPROFILE%\.usage-display\config.json and survive later installs. Running the script again is harmless; it is also how you apply a changed collector.ps1. The collector searches the display port automatically (CH340, CH9102, CP2102) and only uses a port on which the board answers. Other USB serial devices are skipped for 10 minutes after 6 s without an answer.

5. Check

• After about 5–10 s the display shows values, with "@ HH:MM" (time of the last fetch) at the bottom.
• Log: %USERPROFILE%\.usage-display\collector.log
• Latest values: %USERPROFILE%\.usage-display\latest.json

Where do the numbers come from?

The desktop app does not run Claude Code's status line; that only runs in the terminal REPL. The collector therefore takes the same route the desktop app uses internally. It briefly starts the Claude CLI in headless mode (--print --input-format stream-json --output-format stream-json), sends the get_usage control request and reads rate_limits.five_hour / seven_day (utilization 0–100 %, resets_at).

• This uses no quota, because no request goes to the model.
• The CLI handles sign-in and token refresh itself (~\.claude\.credentials.json).
• A token from claude setup-token is not enough: it only has the user:inference scope, and fetching usage needs user:profile.
• The collector uses the newest CLI version bundled with Claude Desktop (%APPDATA%\Claude\claude-code\<version>\…\claude.exe; for the MSIX version of the app, outside the app at %LOCALAPPDATA%\Packages\Claude_*\LocalCache\Roaming\Claude\claude-code\…). If a standalone CLI happens to be installed at %USERPROFILE%\.local\bin\claude.exe, that one is preferred. Without a bundled CLI the collector would also try WinGet and the PATH, but that is a fallback, not a supported setup. A CLAUDE_CONFIG_DIR setting is respected.
• get_usage is an internal interface marked as experimental. If Anthropic changes it, the display shows the collector's error message in the footer.

Session status:

• Local (page 1): every running Claude Code session of the desktop app (and any CLI session in a terminal, if you also use one) keeps ~\.claude\sessions\<pid>.json up to date with busy / waiting / idle. The collector only reads these .json files (never the .key files) and checks PID and start time. Title and last activity of desktop sessions come from their session files (…\Claude\claude-code-sessions). Regular chats from the Chat tab cannot be read locally and are not shown.
• Remote (page 2): sessions on other machines (e.g. a server running Claude Code in a terminal) appear when Remote Control is enabled there (/config → "Enable Remote Control for all sessions", or claude --remote-control). Each session then registers with Anthropic, and the collector fetches the list from GET https://api.anthropic.com/v1/code/sessions, without any network connection to the other machine. To do so it reads the CLI's access token from .credentials.json: read-only, never logged, never refreshed (the CLI does that during the get_usage runs) and never sent to the display. Strictly speaking, page 2 shows all non-archived sessions from that list that cannot be matched to a session on this machine, including ended ones (hollow ring). If you don't use Remote Control anywhere, you will mostly see older sessions of your own there. The interface is internal and undocumented; if it breaks, page 2 shows an error and everything else keeps working.
• Only titles, status and times are shown, never chat content.

Display

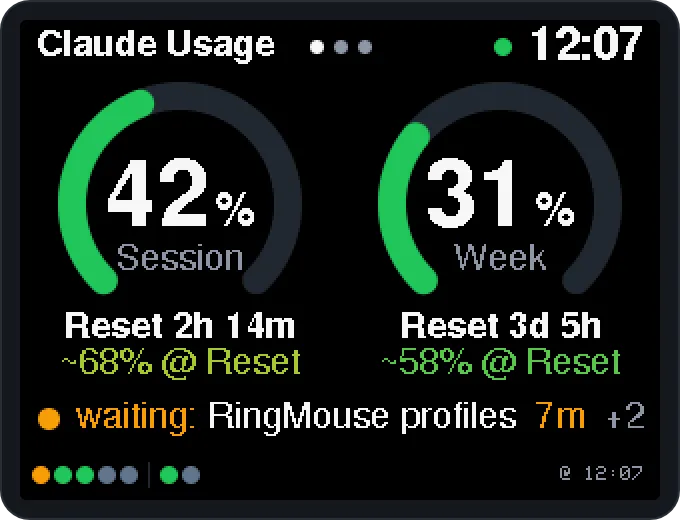

Page 0: Home. Two ring gauges for the 5-hour session and the 7-day week (green up to 50 %, yellow around 80 %, red from 95 %), each with the time until its reset ("Reset 2h 14m", "Reset 3d 5h") and a forecast. Below them the session line; at the bottom one dot per running session and "@ HH:MM", the time of the last usage fetch. The header shows the page dots and the clock; the green dot means the data is current.

• Forecast: "Limit ~HH:MM" (orange) if, at the average pace since the window started (reset minus 5 h or 7 days, starting at 0 %), the limit is reached before the reset, with a weekday if that is more than 20 h away; otherwise "~XX% @ Reset", the projected value at reset, colored like the gauges. Example: 20 % after 2.6 h → 7.7 %/h → about 38 % at reset. It only appears 30 min (session) or 12 h (week) after the window started; before that it would be too jumpy.
• Session line: the session that is waiting for you (orange, "waiting: …"), otherwise the one that is working (green, "working: …"), with its title; for a waiting session also how long it has been waiting ("7m", red after 10 min); "+2" counts further active sessions. Local and remote sessions both count. If all running sessions are idle it says "all sessions idle"; without running sessions it is empty.
• Dots: local sessions on the left, connected remote sessions after the separator. Pulsing green = working, fast-blinking orange = waiting for you, gray = idle. "Waiting" means an open permission prompt or question; for local Claude Desktop sessions also a finished turn that the app marks yellow ("needs input", e.g. Claude asks for a go-ahead) until you open the session. For remote sessions only open prompts count. Clearing the yellow dot via "Mark as completed" in the app's menu is not visible to the display.

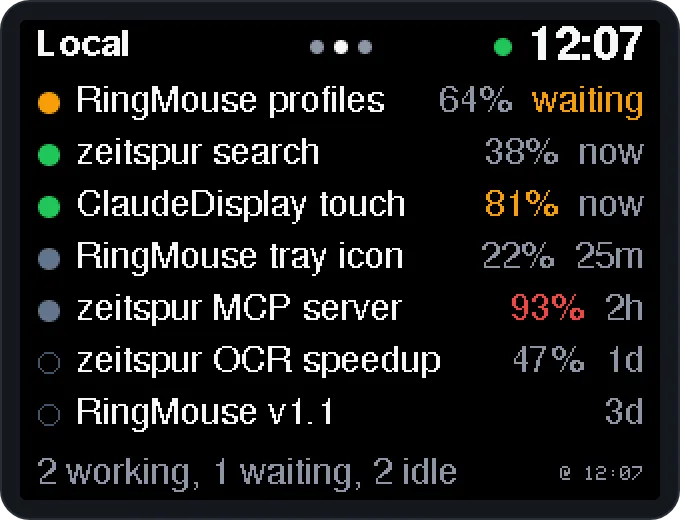

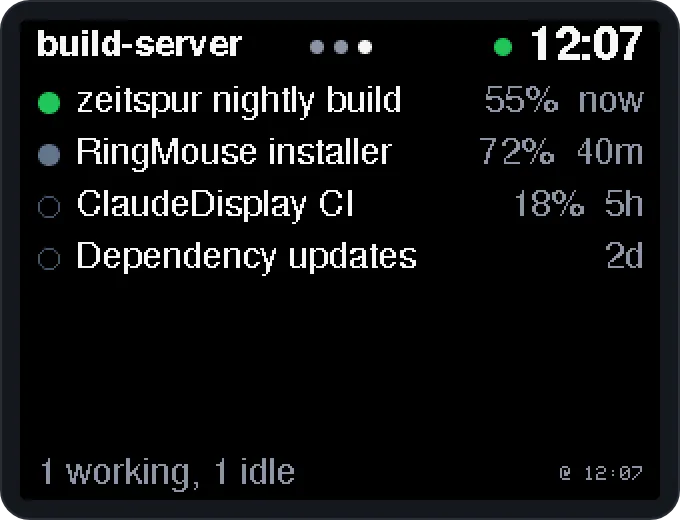

Pages 1 (Local) and 2 (Remote): the last 7 sessions with a status dot (colors as above, hollow ring = offline/ended), title, how full the session's context window is ("64%", orange from 75 %, red from 90 %; only for sessions with Remote Control, because the value comes from the remote session list) and the age of the last activity ("now", "25m", "2h", "3d"; "waiting" for sessions that wait for you). At the bottom a summary, e.g. "2 working, 1 waiting, 2 idle". Page 2 can have its own title, like "build-server" above (install.ps1 -RemoteLabel).

Tap to open: tapping the session line (page 0) or a list row (pages 1/2) opens that session in Claude Desktop, local and remote sessions alike (remote ones in the app's view for Remote Control sessions). The row lights up briefly. Terminal sessions cannot be opened; tapping them, the header, the footer or an empty area switches to the next page.

Switching pages: swipe left for the next page, right for the previous one.

Details (long press): hold a session row or the session line for about half a second. A detail sheet shows status and age, where it runs (this PC, terminal, or the remote page's title), project (local: folder name; remote: repository), branch, model and effort, context (e.g. "512k / 1M (51%)") and start time (for Claude Desktop sessions with the number of turns). Remote sessions get their details from the Remote Control session list, so this works for sessions on other machines too. Any tap closes the sheet; it also closes after 30 s.

Limit warning: from 90 % the ring of the session or week gauge pulses, and the display flashes twice when a value crosses 90 %. At 100 % the forecast line says "Limit reached". When a new window starts, it shows "New 5h window" or "New week" for a minute.

"Done" flash: when a session that worked for at least 10 s finishes (idle or waiting for you), the whole screen inverts for a quarter of a second. Not while Windows is locked. Remote sessions are only fetched every 30 s: they flash if two fetches in a row saw them working (so after about 30 s of work or more), and up to 30 s late.

• "Waiting for data": the display has not received anything from the host since it started.
• "Offline": no message from the host for 90 s ("No data for …"). The last known values are shown at the bottom.
• Standby: after 60 s without a message from the host (PC asleep, undocked, or the collector not running) the backlight turns off. It comes back on by itself as soon as the collector sends data again. A tap shows the screen ("Waiting for data" or "Offline") for 30 s.
• --: value unknown, e.g. before the first successful fetch.
• Update banner: see Updates.
• Brightness: always 100 %; while Windows is locked and in standby the backlight is off. (The light sensor is not used: inside a case it reads "dark" even in a normally lit room.)

The screenshots are read straight from a real display (debug build with -DSCREENSHOT) that was fed demo sessions.

Updates

Every 6 hours the collector asks GitHub for the latest release of this project. If it is newer than the firmware on the display, the footer of the home page shows "Update x.y.z" on the right. Tap it (right half of the footer), then tap again within 5 s ("Tap again to update") to start the update. Firmware built with your own panel flags (ROTATION, PANEL_INVERT, PANEL_SWAP_RB, TOUCH_ROTATION) reports itself as "custom" and gets no banner, because the release images would replace your flags; update those by hand. The footer then says "Updating...". host/update.ps1 runs on its own:

1. downloads the release's setup ZIP and checks its SHA256 against the value GitHub lists for the file,
2. downloads Espressif's official esptool 4.12.0 (SHA256-checked, removed afterwards),
3. stops the collector and flashes the firmware for your panel type (the display reports it),
4. installs the new collector (install.ps1 -NoLogin; your config.json is kept) and starts it.

The display restarts once during this; after about a minute it shows your data again, with the new version. If anything fails, the previous collector keeps running and %USERPROFILE%\.usage-display\update.log says why. You can always update by hand with Setup.cmd from the new release ZIP. The device itself never goes online; only the PC talks to GitHub.

Troubleshooting

Symptom	Cause / fix
Footer "Not signed in: claude auth login"	Run install.ps1 again; it starts the login
Footer "Claude CLI not found"	Is Claude Desktop installed and has its Code tab been opened at least once? The desktop app downloads its bundled CLI there
"Waiting for data" stays on screen	Is the task running? Get-ScheduledTask 'Claude Usage Display'; also check collector.log
Log: "Port COMx not available: Access … denied"	Another program holds the port (serial monitor, PlatformIO upload, a second collector). The collector retries every 3 s
Display is not found	Device Manager: does "USB-SERIAL CH340 (COMx)" or "CP210x (COMx)" show up? If not, install the chip's driver (WCH CH341SER or Silicon Labs CP210x). Charge-only cable?
Board restarts when the port is opened	Happens occasionally (DTR/RTS auto-reset circuit). Harmless: the board sends hello and the collector immediately sends the current state
Wrong colors or mirrored image	Check panel type and build flags (PANEL_INVERT, PANEL_SWAP_RB, ROTATION), see setup step 2
Log: "No display on COMx (no answer)"	Another USB serial device is on that port, or the board does not run this firmware yet. Flash the firmware or set install.ps1 -Port COMx
White screen	SPI clock too high. It is set to 27 MHz in lgfx_cyd.h; above about 32 MHz the panel initialisation fails on some boards
PlatformIO install fails with CERTIFICATE_VERIFY_FAILED	A proxy with TLS inspection (common in corporate networks) intercepts the connection. Install outside that network or point REQUESTS_CA_BUNDLE to the corporate certificate
Numbers differ briefly from claude.ai	The fetch runs every 2 minutes; "@ HH:MM" at the bottom tells you how current they are
Remote page: "No CLI login" / "List: login expired"	The CLI login is missing or expired: run install.ps1 again
Remote page: "List unavailable"	No network, or the internal interface has changed. The last list stays on screen
Remote page stays empty	Remote Control is not enabled on the other machine, or it uses a different Claude account
Update banner: "Updating..." disappears, old version still there	See %USERPROFILE%\.usage-display\update.log. Typical causes: no network, the port was busy, or flashing failed (then run Setup.cmd from the new release ZIP)
Display stays dark although unlocked	"Locked" means LogonUI.exe is running. After unlocking, the next update arrives within 2 s. If the collector has not sent anything for 60 s, the display is in standby: tap it; "Waiting for data" means the collector has not found it yet (see above)
After docking or waking the PC, the display takes a while	The collector can only reach the display once Windows is awake (after docking often only once you have signed in); it then connects within about 3 s, on a new USB port under a new COM number too. Until then the display goes dark after 60 s (standby)

The log is kept short: start, connect, disconnect, changed values, errors. Repeated identical errors are logged only once. At 1 MB it is rotated to collector.log.1.

Protocol

One JSON message per line (UTF-8, \n), 115200 baud, 8N1. Both sides ignore lines that do not start with { (e.g. ESP32 boot messages). The board drops lines longer than 1023 bytes entirely. Texts are ASCII (umlauts transliterated), because the fonts know nothing else.

Host → display

state: on every change, after hello, and every 30 s.

{"t":"state","now":1790975844,"tz":120,
 "s":{"p":17.0,"r":1791031800,"f":1790990400},"w":{"p":24.0,"r":1791284400,"f":0,"e":44},
 "at":1790975800,"lock":0,"d":"w|aiii","x":{"s":"a","n":"API client refactoring","m":1,"t":1790975100,"o":1}}

Field	Meaning
now	Current time, Unix seconds (UTC). The board keeps its clock with it
tz	Local UTC offset in minutes, including daylight saving time
s, w	Session (5 h) and week (7 d): p = used in %, r = reset (Unix s), f = forecast: time at which 100 % is reached, 0 = not before the reset (then e = projected value at reset in %), missing = no forecast yet. If the object is missing, the value is unknown
at	Time of the last successful fetch (missing until there is one)
err	Short error text for the footer (ASCII, max. 44 characters). Missing when all is well
lock	1 = Windows locked → backlight off (also stays in effect while offline)
d	Dots: one character per running session, w working, a waiting, i idle; local first, then |, then remote (max. 24)
x	Session line: s = a waiting / w working / i all idle, n = title (ASCII, max. 40), m = number of further active sessions, t = waiting since (Unix s, only for a), o = 1 if it can be opened on the PC. Missing = no running sessions

list: session list for page p (1 = local, 2 = remote), on change and after hello.

{"t":"list","p":2,"at":1790975800,"l":"my-server","i":[{"n":"Refactoring API client","s":"i","a":1790890000,"o":1,"c":51}]}

Max. 7 entries, newest first. n = title (max. 40 characters), s = w working, a waiting, i idle, o offline/ended, a = last activity (Unix s), o = 1 if the session can be opened on the PC (not for terminal sessions), c = context window used in % (missing = unknown). Optional err (error while fetching) and l (custom page title, max. 14 characters).

state also carries u = version of a newer release on GitHub (missing = none) and ux = 1 while the host is updating; the board then shows the update banner.

{"t":"detail","n":"Refactoring API client","s":"w","r":[["Status","working, now"],["Model","opus-5-5, max"]]}: answer to a detail request: shown title n, status s and up to 7 rows r of [key, value] (ASCII, value max. 40 characters). r is empty if the session is unknown.

{"t":"done"}: a session that worked for at least 10 s (remote: in two fetches in a row) has finished; the display inverts for 250 ms. Not sent while Windows is locked.

Display → host

Message	When
{"t":"hello","fw":"2.7.0","pn":"st7789"}	After start-up, with firmware version and panel type. The host immediately sends state and both list
{"t":"ack","s":17.0,"w":24.0,"b":255,"fw":"2.7.0","pn":"st7789"}	After every state: the accepted values, the target brightness b (255, or 0 while locked), firmware version and panel type (for the update)
{"t":"detail","p":1,"i":2,"n":"Refactoring API client"}	A session was held (long press), same fields as open. The host answers with detail
{"t":"update"}	The update banner was tapped twice. The host starts update.ps1
{"t":"open","p":1,"i":2,"n":"Refactoring API client","x":160,"y":95}	A session was tapped: page p, row i (-1 = session line), shown title n, tap position x/y. The host takes row i of the list it last sent if the title matches (otherwise it searches by title) and opens claude://claude.ai/epitaxy/<id> (local) or claude://claude.ai/code/<id> (remote, cse_ becomes session_) in Claude Desktop. It logs page, row and position, never the title

Timing: usage every 120 s (in the background), local sessions every 2 s (Claude Desktop session files every 4 s), remote list every 30 s, lock state every 2 s, heartbeat every 30 s, standby after 60 s and offline screen after 90 s without state, release check every 6 h. The board computes the countdowns itself from r and the clock set by the host.

Uninstall

Mind the order: restoring the original firmware needs PlatformIO (esptool).

1. Optional: restore the original firmware (the file backed up in setup step 1). Stop the collector first (Stop-ScheduledTask 'Claude Usage Display').

pio pkg exec -p tool-esptoolpy -- esptool.py --chip esp32 --port COMx --baud 460800 write_flash 0 firmware\backup\original-firmware.bin

2. Remove the host part:

pwsh -NoProfile -ExecutionPolicy Bypass -File .\host\uninstall.ps1

Removes the task, stops the collector and deletes %USERPROFILE%\.usage-display. Optional switches:

• -Logout also signs out the Claude CLI.
• -RemovePlatformIO also deletes %USERPROFILE%\.platformio. Only use it after step 1, and only if you installed PlatformIO just for this project: the folder also holds the tools of other PlatformIO projects and of the VS Code extension.

This project does not modify ~\.claude\settings.json.

Hardware notes

• Tested with ESP32-D0WD-V3, 4 MB flash, CH340 (VID 1A86, PID 7523).
• Panel of the dual-USB revision: ST7789 family (controller ID 81 81 B3, read back via SPI), no inversion, BGR, rotation 1 = landscape 320×240.
• SPI: SCLK 14, MOSI 13, MISO 12, CS 15, DC 2, no reset pin. Backlight GPIO 21 (PWM). Touch (XPT2046): CLK 25, MOSI 32, MISO 39, CS 33, IRQ 36.
• Without a reset pin the panel keeps its registers until power is removed. The firmware therefore resets it by software at start-up and then writes B6h (gate scan direction). This way the image is the same after every restart, whatever firmware ran before.
• Auto-reset circuit: RTS → EN, DTR → GPIO0. That is why the collector opens the port with DtrEnable = RtsEnable = false.

Some of the pin and clock findings were inspired by the Blink project. No code was taken from it.

License

MIT with the "Commons Clause": you may use, modify and share it freely, but selling it or offering paid products or services whose value derives substantially from this software is not allowed. See LICENSE for details.
